Product

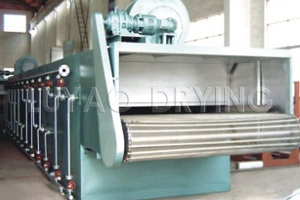

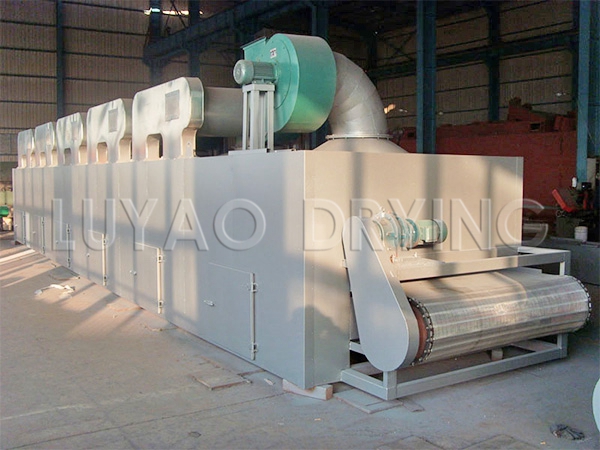

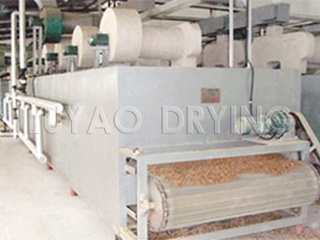

DW single layer belt dryer
Detailed Description
Product introduction
??This machine is a continuous-flow drying equipment , used for the drying of
sheets, strips, and granular materials with good air permeability. For
dehydrated vegetables, Chinese Herbal Pieces and other types of
materials with high moisture content, and the temperature is not allowed
to be high. Particularly suitable; this series of drying machine has
the advantages of fast drying speed, high evaporation strength and good
product quality. For the dehydrated cake-like paste material, it can be
dried after being granulated or made into a rod shape.
Performance characteristics◎ can adjust the air volume, heating temperature, material retention time and feeding speed to achieve the best drying effect.
◎The equipment configuration is flexible. It can use the mesh belt washing system and the material cooling system.
◎ Most of the air is recycled and highly energy-efficient.
◎ The unique air distribution device makes the distribution of hot air
more uniform and ensures the consistency of product quality.
◎The heat source can be supplied with steam, heat transfer oil, electric or coal-fired (oil) hot air furnace.
Working principle??Material
is evenly laid on the mesh belt by a feeder. The mesh belt generally
adopts a 12-60 mesh stainless steel mesh and is moved by a transmission
device to move in the dryer. The dryer consists of several units. Each
unit has its hot air circulates independently. Part of the exhaust air
is discharged by a special dehumidifying fan. The exhaust gas is
controlled by a regulating valve. The hot gas from the bottom up or from
top to bottom passes through the mesh belts covered with materials to
complete the heat and The process of mass transfer takes away material
moisture. The mesh belt moves slowly, the operating speed can be
adjusted freely according to the material temperature, and the dried
product continuously falls into the receiver. The upper and lower
circulation units can be flexibly equipped according to the needs of
users, and the number of units can also be selected according to the
needs.
Adapt to the??dehydrated
vegetables, pellet feed, monosodium glutamate, coconut, organic
pigments, synthetic rubber, acrylic fiber, medicines, herbs, small wood
products, plastic products, electronic devices without aging, curing and
so on.
Technical specifications
| model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| Number of units | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| Bandwidth (m) | 1.2 | 1.6 | 2 | |||||
| Drying section length (m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
| Material thickness (mm) | 10-80 | |||||||
| Working temperature (°C) | 50-140 | |||||||
| Steam pressure (MPa) | 0.2-0.8 | |||||||
| Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
| Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
| Drying strength kg water/h | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
| Total power of equipment (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
| Length (m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | |
| Dimensions | Width (m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 |
| High (m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
| Total weight kg | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | |
