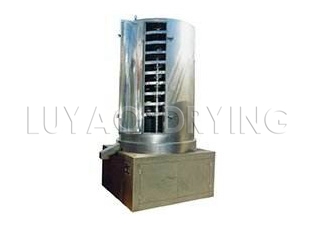

LZG series spiral vibration dryer
Detailed Description
Product Overview The
wet material enters the spiral bed from the top feeding port. Under
the effect of the circumferential excitation force and gravity, the
material moves from top to bottom along the spiral bed until the bottom
layer; at the same time, the clean hot air enters from the bottom of the
spiral bed. After thorough heat transfer and mass transfer with the
materials distributed on the bed, they are discharged from the top of
the vents. In order to achieve the purpose of drying the material.
Application
The drying equipment is mainly
used for the drying of traditional Chinese medicine pills. It can also
be applied to the drying of granular, short strip, and spherical
materials in the industries of chemical engineering, control, food,
plastics, building materials, and feed.
Main Features
● The hot air passes through the material layer several times and the
material flows in the opposite direction, so that the heat exchange is
sufficient and the thermal efficiency is high.
● Compact structure, small footprint.
● The residence time of the material in the bed can be adjusted and the operation is convenient.
● The material moves along the spiral bed from the bottom to the top
while making a jump on itself, which increases the contact between the
material and hot air and enhances the drying effect.
● Continuous feeding and discharging are suitable for assembly line
operations, and are easy to meet the “GMP” standard, which can replace
the traditional box drying.
● There is no damage to the surface and shape of the material, which
not only ensures the roundness of the pill, but also greatly reduces the
breaking rate of the pill.
Technical specifications
| model | LZG-1.0 | LZG-1.2 | LZG-1.4 | LZG-1.6 | LZG-1.8 |
| Diameter (mm) | 1,000 | 1200 | 1400 | 1600 | 1800 |
| Vibration motor power (kw) | 2×1.1 | 2×1.1 | 2×1.5 | 2×1.5 | 2×2.2 |
| Overall size (m) | 1.2 x 1.2 x 2.7 | 1.4×1.4×2.7 | 1.6×1.6×3.3 | 1.8×1.8×3.3 | 2.0×2.0×3.3 |
| Weight (kg) | 1400 | 1680 | 2800 | 3100 | 3800 |
| Inlet air temperature (°C) | 60-200 | 60-200 | 60-200 | 60-200 | 60-200 |
| Air volume (m3/h) | 1487 | 2380 | 3721 | 4462 | 5930 |
